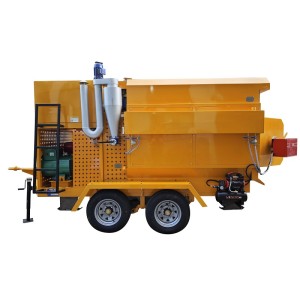

Truck Mounted Crack Sealing Machine

Model: ZM-GF300/ZM-GF500

Item specifics

Condition: New

Review

Description

Main Technical Description

(1)Power Unit: 5.5KW Honda generator and with all electric motor, it is easy to operate and maintenance.

(2) Heating unit: Diesel Burner + heating transfer oil +electric heating wire for the hose. improving heat exchange rate, reducing waiting time and prolonging working time. Auto-thermostatic control system ensures the constant sealant temperature.

(3) Big design platform: can load the router and blower easily by the Electric hoist to the platform.

(4) Digital control box. All the temperate are shown on digital meter and all the operation are done by the control box.

Main Technical Parameter

Model	ZM-GF300	ZM-GF500
Dimension(mm)	3000x1700x1900
Weight(kg)	1200
Mix tank(L)	266	500
Heating oil capacity(L)	93	140
Sealant melting capacity(kg/h)	260	260
Agitator motor power(kw)	1.5
Output motor power(kw)	0.75
Sealant hose heating power(kw)	1.1
Burner power(kcal/h)	56000
Burner Fuel oil tank capacity(L)	80
Generator power(kw)	5.5
Generator oil tank capacity(L)	25
Output voltage(V)	380/220
Hoist motor power(w)	850
Loading weight(kg)	200~400
